Save & reuse grid configurations

Store a shape + size + distance to apply in one click.

A grid configuration saves your shape, grid size and point distance so you can apply the exact same grid to future scans. The table also shows the Maps zoom each config resolves to. On a team you see your teammates’ saved grids too, unless your access is limited to chosen clients. Only whoever saved one, the team owner or a Manager can change or delete it.

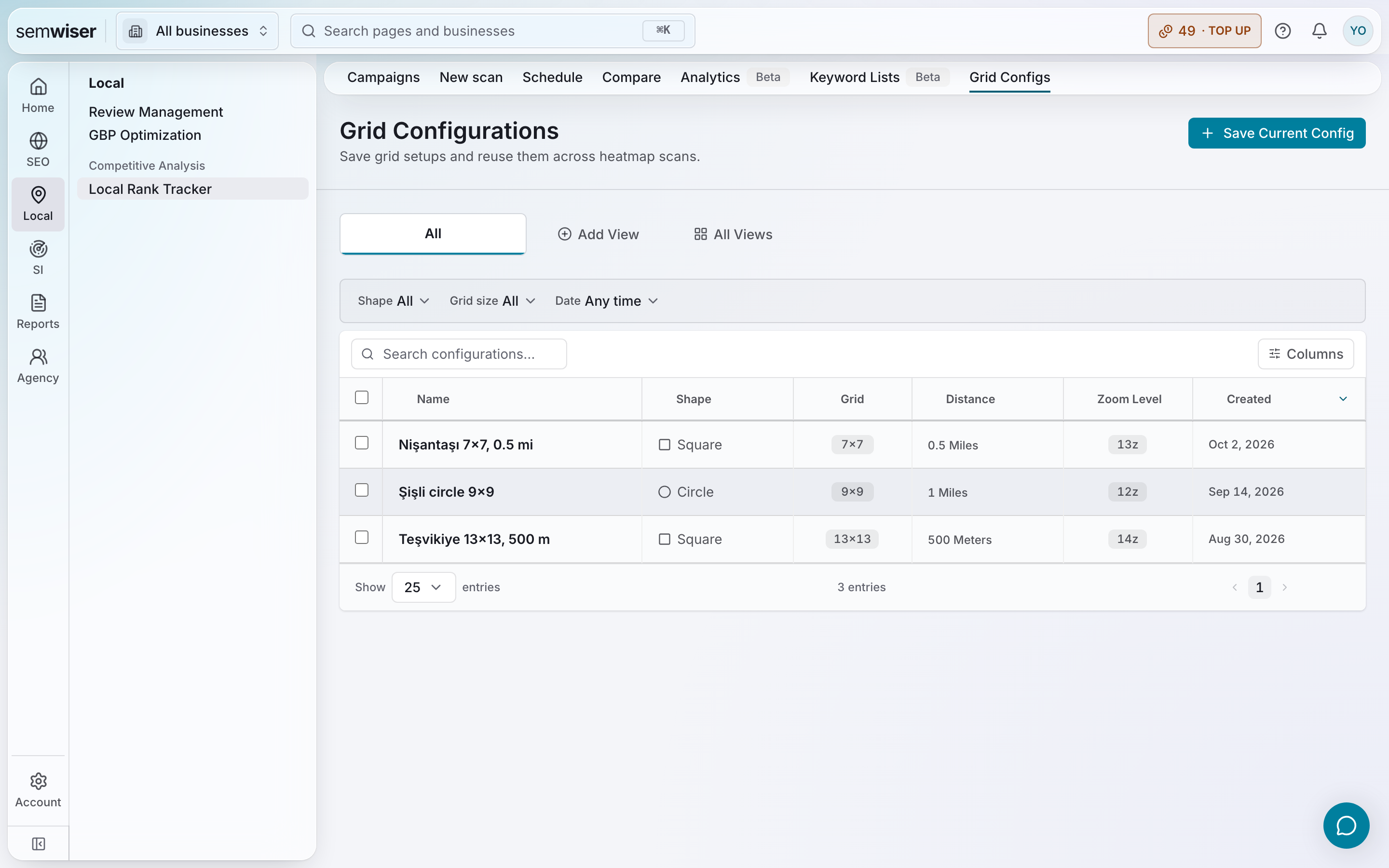

Grid Configs, with example saved grids: shape, grid, distance and the Maps zoom each one uses.

Saving a config

  1. 1Set the shape, grid size and distance in Local → Local Rank Tracker → New scan.
  2. 2Click Save this grid (the disk icon) in the scan bar, type a Grid name and click Save.
  3. 3Apply it later from Load a saved grid (the folder icon), or manage every saved grid under Grid Configs. Loading one brings back its area and any moved points; your keywords stay as they are.
